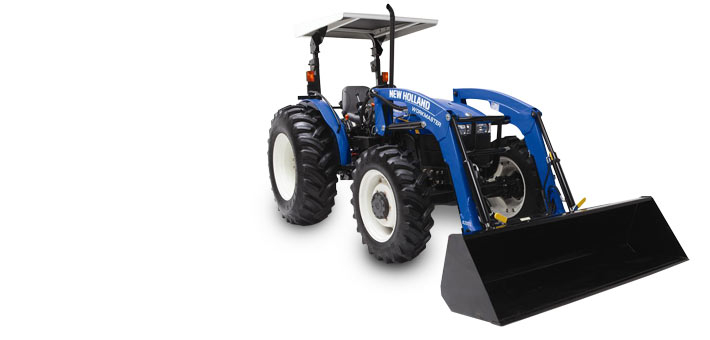

Workmaster 45-75 Engine HP

Overview

WORKMASTER™ Tractors
45 - 75 Engine HP

LIKE YOU, IT KNOWS THE VALUE OF A HARD-EARNED DOLLAR

New Holland salutes a generation of doers by introducing a new line of tractors with a familiar name – WORKMASTER™. Popular in the 1960s, the original WORKMASTER models were known for their dependability and value. Today, it's no different. Whether you're mowing, moving, baling or loading, new WORKMASTER tractors work hard, are easy to afford, and at the end of the day, deliver the satisfaction of a job well done.

ENGINE

THE POWER BEHIND A JOB WELL DONE

Ample power and a durable design make routine chores and ambitious projects easy. Four WORKMASTER™ models let you choose between 45, 55, 65 or 75 engine horsepower, that offer a quiet start-up and smooth, fuel-efficient operation. Tier III emission compliant engines protect the environment and give you the flexibility to run on B5 biodiesel blends (WORKMASTER 45 and 55) or B20 biodiesel (WORKMASTER 65 and 75).

SMOOTH AND RESPONSIVE

Whether you choose the naturally aspirated WORKMASTER™ 45 or the turbocharged WORKMASTER 55, 65 or 75, you'll work in confidence. All models feature an indirect mechanical fuel injection for quick response and smooth operation while boosting fuel efficiency and reducing emissions. And timed glow plugs ensure an easy start on cold mornings.

CLEAN ENERGY LEADER

Tier III emission compliant engines are approved to run on B5 biodiesel blends (WORKMASTER 45 and 55) or B20 biodiesel (WORKMASTER 65 and 75). You'll benefit from fuel flexibility, and boost air quality.

TRANSMISSION

EXACTLY WHAT YOU NEED

You'll find the speeds you need to match any task in the new WORKMASTER™ tractors. Just like an automobile, gears are arranged in a simple pattern, and the WORKMASTER 45 and 55 offer a SynchroShuttle that lets you easily flip from forward to reverse and back again. With operation this smooth, you'll cruise through chores and be ready to tackle your next big project.

MORE SPEEDS

Match your speed to your application.
• WORKMASTER 45 and 55: Four constant mesh gears are available in high and low ranges for a total of eight forward and eight reverse gears between 1.76 and 18.6 mph.
• WORKMASTER 65 and 75: Four gears available in high and low ranges for a total of 8 forward gears and 2 reverse gears between 1.9 and 19.0 mph. Gears 3 to 4 and 7 to 8 are synchronized and allow for "shift on the go" convenience.

EASY MANEUVERS

After a long day of loader work, you'll understand why the SynchroShuttle transmission, available on the WORKMASTER 45 and 55, comes standard. This high-performance feature provides quick changes in direction with a dash-mounted shuttle lever located at your left hand for effortless maneuvering.

LOADER, AXLE, HITCH AND HYDRAULICS

BUILT TO DO WHAT TRACTORS DO BEST

Heavy-duty loader work and tough three-point implement applications are all in a days work for the WORKMASTER™. All models are available with a front-wheel-drive axle to give a sure grip and better performance on slippery or uneven terrain. And impressive hydraulic and three-point hitch lift capacity let you take on bigger implements to make short work of any job.

CUSTOM LOADER

Add a 615TL or 625TL loader and find out what the WORKMASTER is truly capable of. The quick-attach design makes it easy to hook up and remove or switch buckets and attachments.

AVAILABLE FWD FRONT AXLE

If your workday calls for extra traction and stability, the WORKMASTER has your back with mechanical 4WD engagement available on all models. All-wheel-drive traction in an economy class is another way this workhorse outperforms the competition.

POWERFUL REAR AXLE

An inboard planetary final drive on the WORKMASTER 45 and 55 rear axle provides incredible strength and a compact design. More space around the three-point hitch area gives you flexibility with implement hookup and wheel settings.

THREE-POINT HITCH

Shouldering responsibility comes easy exceptional lift capacity and mechanical draft control is available on the WORKMASTER 55, 65 and 75. All models feature flexible link ends, telescoping stabilizers and a swinging drawbar to make implement hookup a snap.

TANDEM HYDRAULICS

Go ahead and multitask. The open-center hydraulic system utilizes tandem hydraulic pumps so you get all the power you need for steering, rear remote valves and the three-point hitch and loader work. An independent 540-rpm PTO keeps three-point implements engaged even when you change gears, turn or clutch.

	Lift Capacity	Lift Height	Breakout Force
615TL	2,600 lbs	9 feet	4,200 lbs
625TL	3,600 lbs	10 feet	5,300 lbs

	3 point Lift Capacity (24 in. behind ball ends)
Workmaster 45	1,830 lbs
Workmaster 55	2,530 lbs
Workmaster 65	2,429 lbs
Workmaster 75	2,429 lbs

OPERATOR PLATFORM

THE RIGHT FIT

Climb aboard and you'll see what a difference attention to detail makes. From the clear path to the seat to the perfectly placed controls, the WORKMASTER™ is designed to make long days in the saddle comfortable and more productive.

PRIME SEATING

This is no one-size-fits-all seat. The deluxe contoured suspension seat adjusts to match operators height.

VIEW FROM THE TOP

Industry-leading styling isn't just for looks. The sloped hood and rounded fenders provide unsurpassed sight lines in all directions.

CONTROLS WHERE YOU WANT THEM

Controls are dash mounted and at your side so they come quickly to your hand for effortless operation.

INFO AT-A-GLANCE

Bright analog gauges allow you to easily monitor tractor status.

MAINTENANCE

SERVICE IN A SNAP

It doesn't get any easier than this. Convenient checkpoints let you stay on top of routine maintenance.

EASY-LIFT HOOD

The one-piece flip up hood lifts on a gas strut for instant access to service areas without cumbersome panels or grills to remove.

QUICK OIL-CHECK

Engine oil can be checked from one convenient location, without even raising the hood.

FASTER FILL-UPS

The fuel tank is protected under the hood and easy to fill from the ground or the operator platform.

Workmaster 45 2WD PTO horsepower, hp: 39 Transmission: 8Fx8R with 4 constant mesh gears, 2 constant mesh ranges and synchronized shuttle 3-point hitch lift capacity lbs: 1,830 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard	Workmaster 45 4WD PTO horsepower, hp: 39 Transmission: 8Fx8R with 4 constant mesh gears, 2 constant mesh ranges and synchronized shuttle 3-point hitch lift capacity lbs: 1,830 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard	Workmaster 55 2WD PTO horsepower, hp: 47.5 Transmission: 8Fx8R with 4 constant mesh gears, 2 constant mesh ranges and synchronized shuttle 3-point hitch lift capacity lbs: 2,580 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard	Workmaster 55 4WD PTO horsepower, hp: 47.5 Transmission: 8Fx8R with 4 constant mesh gears, 2 constant mesh ranges and synchronized shuttle 3-point hitch lift capacity lbs: 2,580 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard
Workmaster 65 2WD PTO horsepower, hp: 57 Transmission 8Fx2R gears, 3 to 4 and 7 to 8 synchronized 3 point hitch with lift capacity lbs: 2,429 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard	Workmaster 65 4WD PTO horsepower, hp: 57 Transmission 8Fx2R gears, 3 to 4 and 7 to 8 synchronized 3 point hitch with lift capacity lbs: 2,429 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard	Workmaster 75 2WD PTO horsepower, hp: 65 Transmission 8Fx2R gears, 3 to 4 and 7 to 8 synchronized 3 point hitch with lift capacity lbs: 2,429 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard	Workmaster 75 4WD PTO horsepower, hp: 65 Transmission 8Fx2R gears, 3 to 4 and 7 to 8 synchronized 3 point hitch with lift capacity lbs: 2,429 Rear PTO: Standard 540-RPM, w/ flip-up PTO shaft guard
