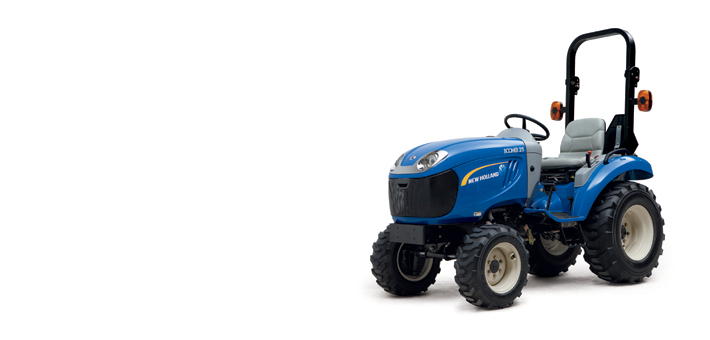

Boomer Series 23-27 HP

Overview

Boomer™ Compact Tractors
23-27 hp

WARNING, THIS IS NOT A TOY

If your personal piece of heaven is between one and five acres, your plans can quickly outgrow the capabilities of ordinary lawn and garden tractors. When you need to haul dirt and mulch, mow acres of grass, till a garden or remove snow, a versatile Boomer™ 20/25 compact tractor can power all the implements you'll need and more.

ENGINE

MORE POWER WORKING FOR YOU

For dependability you can count on, Boomer™ 20/25 compact tractors featuring powerful Mitsubishi diesel engines deliver 23 or 27 hp. What's more, the majority of the gross engine horsepower gets turned into usable power at the PTO to run a variety of implements thanks to an ultra-efficient driveline.

FEWER FILL-UPS TO SLOW YOU DOWN

How far will you go with one of the largest gas tanks on the market? Fill up the productivity-boosting 6.6-gallon, hood -mounted fuel tank and see for yourself.

WELL-EQUIPPED FOR INCLEMENT WEATHER

To ensure fast starts in cold weather, Boomer™ 20/25 compact tractors come equipped with a quick-heating glow plug package and a heavy-duty 560 CCA battery that provides plenty of cranking power.

MADE TO ACCOMMODATE MORE

Superior battery charging and the capability to handle the higher demand of additional electrical accessories provided by a 50-amp alternator.

TRANSMISSION

NO GEARS TO GET IN YOUR WAY

Driving a tractor has never been so easy; thanks to a high-performance, two-range single-pedal hydrostatic transmission that eliminates the need for gears or clutching. Now you can control the exact speed you want for each task, and shuttle more easily when mowing or doing loader work using a single forward and reverse foot pedal to propel the tractor.

MORE TRACTION TO TAKE ON MORE TASKS

To help you work more efficiently, four-wheel drive (4WD) comes standard on Boomer™ 20/25 compact tractors. Simply use the lever on the left fender to shift from 2WD to 4WD when you need some extra traction.

CRUISE THROUGH TASKS

Give your right foot a rest. Select and maintain a constant working speed with the standard cruise control. It really comes in handy for mowing larger properties and transporting your tractor from one location to another.

TWO RANGES THAT RUN THE GAMUT

Use the left-hand fender control pod to select the proper range for the task:
LOW RANGE
• Tilling
• Blowing snow
• Heavy mowing
• Loader work

HIGH RANGE
• Light mowing
• Moving from job to job

HITCH AND HYDRAULICS

POWER THROUGH YOUR EVERYDAY PROJECTS

Whether you plan to use a front-mounted loader, broom or blade to move mulch, gravel or snow, Boomer™ 20/25 compact tractors pack enough hydraulic power to keep up with your demands. You'll also have lots of power at the rear three-point hitch to lift and operate heavy implements to get more done.

AMPLE POWER TO GO AROUND

Responsive power steering is ensured by a 2.5-gpm dedicated steering pump. A separate 6.0-gpm implement pump powers implements. This way, one system won't tax the other during demanding conditions.

TWO PTO OPTIONS

Versatility is built right in. An independent, mid PTO (2,000 rpm) can power a mid-mount mower and front-mounted implements like a snow blower or rotary broom. And an electro-hydraulic, independent, rear PTO (540 rpm) allows you to use rear-mounted implements such as a rotary tiller or utility rotary cutter.

PREMIUM THREE-POINT HITCH

Handle heavy duty tasks with a Category I three-point hitch that provides a 1,433-pound lift capacity. Precisely adjust the drop rate of three-point mounted implements with a flow control valve. Adjust rear-mounted implements safely thanks to adjustable stabilizers and a mechanical leveling mechanism.

OPERATOR PLATFORM

ADVANCED ERGONOMICS IN ACTION

Comfort is the key to productivity. That's why Boomer™ 20/25 compact tractors are designed with your comfort in mind. You'll be able to work efficiently for longer periods of time thanks to the advanced ergonomic features found on the spacious and comfortable Boomer platform.

PREMIUM SEATING COMES STANDARD

A high-backed, flip-up, contoured seat glides on a fore/aft track to put you in the right spot to maximize your comfort and visibility.

DESIGNED WITH SAFETY AND STORAGE IN MIND

The Roll Over Protection System (ROPS) helps protects you if the machine tips over. All Boomer sub-compact tractors have a foldable ROPS so you can drive under trees and lower overhangs, and easily store the tractor in low-clearance areas. Remember to always wear your seatbelt.

ADDITIONAL ENHANCEMENTS

• Easy-to-reach controls are color-coded and labeled with their functions.
• Dashboard instrumentation includes fuel gauge, temperature gauge, digital tachometer and hour meter, cold starting aid indicator and warning lights for engine oil pressure and battery charge.
• Added conveniences include a cup holder and tool tray.

LOADER

OUTSTANDING VERSATILITY, STRENGTH AND VISIBILITY

If you need to move gravel, mulch, plants, dirt or hay as quickly as possible, you'll want a 235TLA front-end loader. It features a distinctive, curved-boom design that integrates with the sleek hood of your Boomer™ 20/25 compact tractor, giving you a clear view of the loader's operation for added safety and productivity.

EASY TO OPERATE

The joystick control mounts on the right fender and is positioned comfortably within reach of the operator.

TOOL-FREE MOUNTING

Simple, Quick-Attach™ design allows you to easily mount and remove the loader without tools or the help of another person.

EXCELLENT VALUE AND PERFORMANCE

Invest in your future. The 235TLA front-end loader is designed for durability, long life and excellent reliability. It offers construction-grade, heavily reinforced toughness at a value price.

MODEL 235TLA LOADER SPECS

• Lift Capacity: 1,034 lb (470 kg)
• Break-out Force: 1,672 lb (760 kg)
• Max Lift Height: 80.7 inch (2050 mm)
• Bucket Width: 54 inch (1371 mm)

MID-MOUNT MOWERS

MOW LIKE A PRO

Whether you have one acre to mow, or have multiple acres to tackle, a mid-mount mower powered by a mid PTO can help you cut it down to a more manageable size. When you've outgrown a riding mower, a Boomer™ 20/25 compact tractor is right for you.

ADJUSTS TO CHANGING CONDITIONS

For a uniform cut, a free-floating, four-bar linkage allows the mower to move up and down to follow the contours of your land.

POWERFUL, PRECISION CUTTING

Three overlapping blades spin at up to 18,000 ft per minute for smooth, efficient cutting action.

MOWER DECK HEIGHT CONTROL

You can easily change the cutting height with a mechanical height adjustment located in by the 3-point hitch.

BUILT TO MOW FOR MANY YEARS

The mid-mount mower's fabricated design is stronger than the competition and can stand up to many seasons of use.

Model 260MS MOWER SPECS

• Cutting width: 60 inch (1524 mm)
• Side-discharge
• Three blades
• Blade tip speed: 18,000 fpm
• Cutting height: From 1.75 to 4.5 inches; 0.5 in. increments (45 to 114 mm; 13 mm)

MAINTENANCE

MAINTENANCE MEETS CONVENIENCE

Maintaining a Boomer™ sub-compact tractor is easy because all routine maintenance points are located on the right side of the engine. Plus, you can easily check engine oil level without raising the hood and without removing the loader.

BEST-IN-CLASS ACCESS

Access doesn’t get any easier than this. The high-pivot hood lifts on a mechanical rod to provide complete access to the engine, radiator and battery for easy inspection and routine maintenance.

QUICK AND EASY FLUID LEVEL CHECKS

A dipstick located at the rear of the tractor allows you to check transmission, rear axle, and hydraulic system fluid levels. A large fill port is also provided here.

FILTERS PROVIDE ALL-AROUND PROTECTION

• Single-element fuel filter protects the engine's fuel injection system from rust, dirt and water.
• A full-flow, spin-on oil filter provides protection to the engine lubricating system.

EXTENDED POWERTRAIN WARRANTY

For greater peace of mind, Boomer™ 20/25 compact tractors come with Boomer Guard 5 - one of the best warranties offered in the industry - with 2 years bumper to bumper and a 5 year warranty for the powertrain.

Boomer 20

Engine Power: 23 hp
PTO Power: 15.5 hp
Axle: 4WD
Transmission: 2 Range, treddle peddle, hydrostatic transmission
3-Point Hitch Lift Capacity: 1,433 lbs

Boomer 25

Engine Power: 27 hp
PTO Power: 19.9 hp
Axle: 4WD
Transmission: 2 Range, treddle peddle, hydrostatic transmission
3-Point Hitch Lift Capacity: 1,433 lbs
